Hello again and welcome to another installment of Luthier's Corner. This month, I want to discuss my most recent client build, a custom Golden Lion model electric guitar.

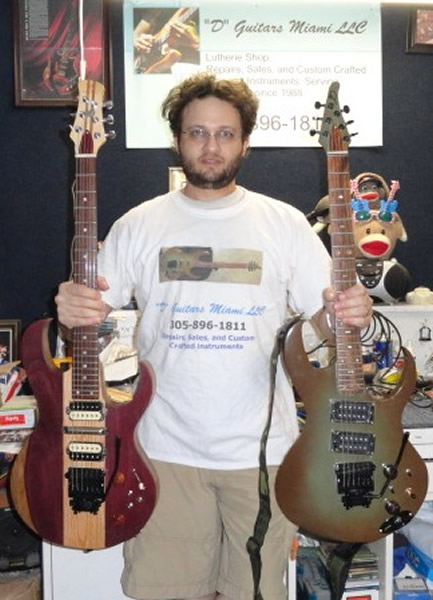

OK so several weeks ago, I had my new friend, Gregory Ram, come by to commission me to build him his very own custom guitar. I showed him my main Golden Lion and he said that that was the style he wanted. You can see me holding both my original one and Gregory’s new Golden Lion in the photo to the right of this article. After discussing certain specifics, such as neck size, pickup configuration, etc, I got to work on the guitar you see here. I must say, in my humble opinion, she is a real beauty.

The neck is 5 piece-maple and walnut, rosewood fretboard, 24 frets, 25.5" scale length. The body is comprised of 4 pieces of butternut, and 1 piece of poplar, with a 3 piece top consisting of 2 pieces of 1/8" thick purpleheart with a piece of 1/8" red oak in the center. Purpleheart control cavity cover, and truss rod cover. It has the extreme belly and arm carves that are standard on this and my Fin models, making her an extremely comfortable guitar. And she only weighs 6.5 lbs.

The hardware consists of Pro Line self locking tuners, 1 5/8" wide bone nut, Stetsbar trem bridge, neck and bridge GFS Fat Pat humbuckers, Danelectro lipstick single coil middle pickup, master 500K volume and 250K tone pots, 5 way CRL switch, 3 position coil select mini toggle swith for the neck, and for the bridge pickups, and a neck add switch for adding the neck pickup to the bridge pickup. She is fully setup with 10's, as requested.

The action is low and fast, with no buzz, and the intonation is perfect all the way up the neck. This guitar has a great resonance to her, that really shows when strummed acoustically, which only enhances the amplified tones.

raw timber to playable instrument

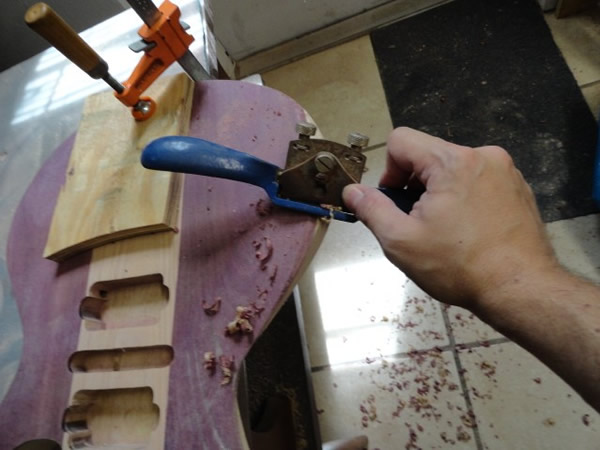

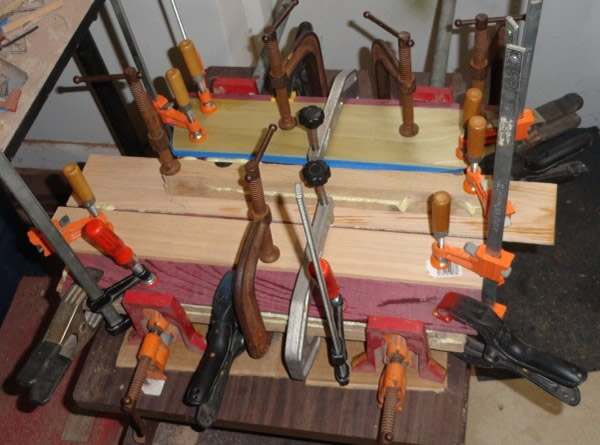

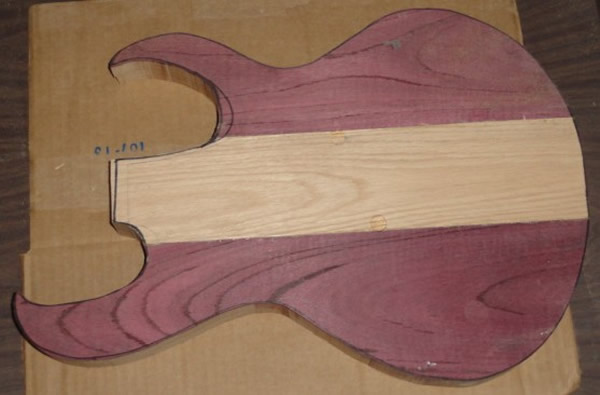

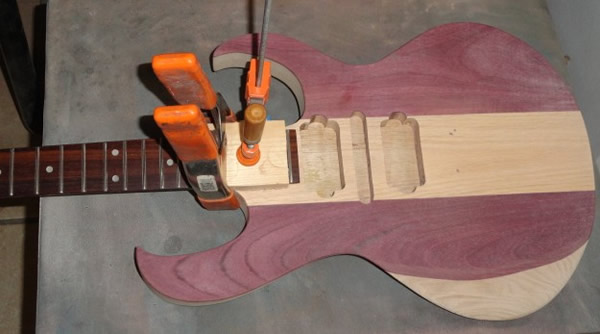

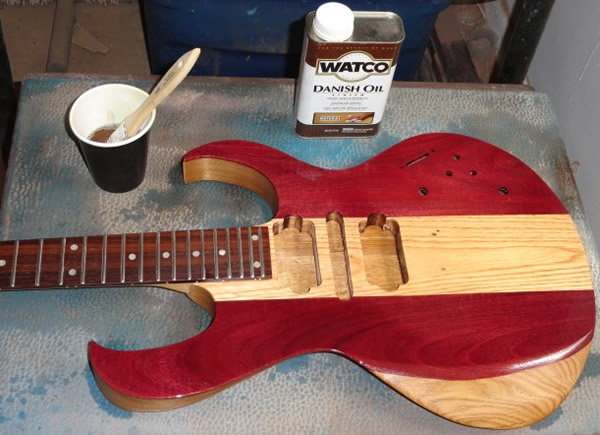

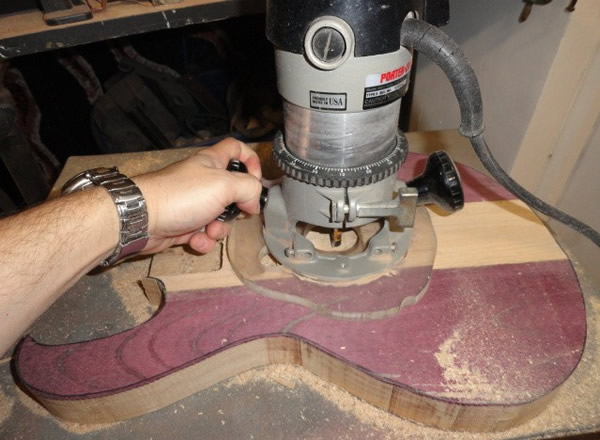

Gregory was extremely pleased when he picked it up. That's what makes it all worth it. I’m very proud of this particular build, and seeing his reaction is what made it all worth it. To really get a good idea of what it took to go from raw timber to playable instrument, check out the following pictures. Picture A shows the body woods being glued together. Picture B shows the body basically cut out. Picture C shows me routing out the pickup cavities. Picture D shows me carving the arm carve on the top of the body using my spokeshave. Picture E shows the neck being glued into the body. Picture F shows the first coat of Danish Oil Stain applied to the guitar, after all the woodworking was completed.

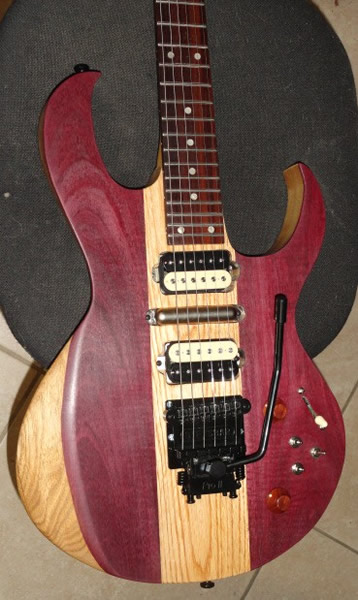

Picture G shows a close up of the body of the completed guitar. And Picture H shows the happy new owner with his new guitar. To really get a more in depth look at this guitar, click on the following link to see fully detailed picture album:
https://www.facebook.com/dguitarsmiami/media_set?set=a.641428225896908.1073741847.100000892103878&type=3

And click this link to see the demo video of the completed guitar:
https://www.facebook.com/photo.php?v=634893216550409&set=vb.100000892103878&type=3

Well, I hope you found this month’s article informative and enlightening. Once again, thanks for reading my column and remember no task worth accomplishing is ever achieved if not pursued with fierce dedication. Believe in yourself, and make happen that glorious noise called music! Until next time, remember, there is nothing you can't do if you set your mind to it! Cheers!!
